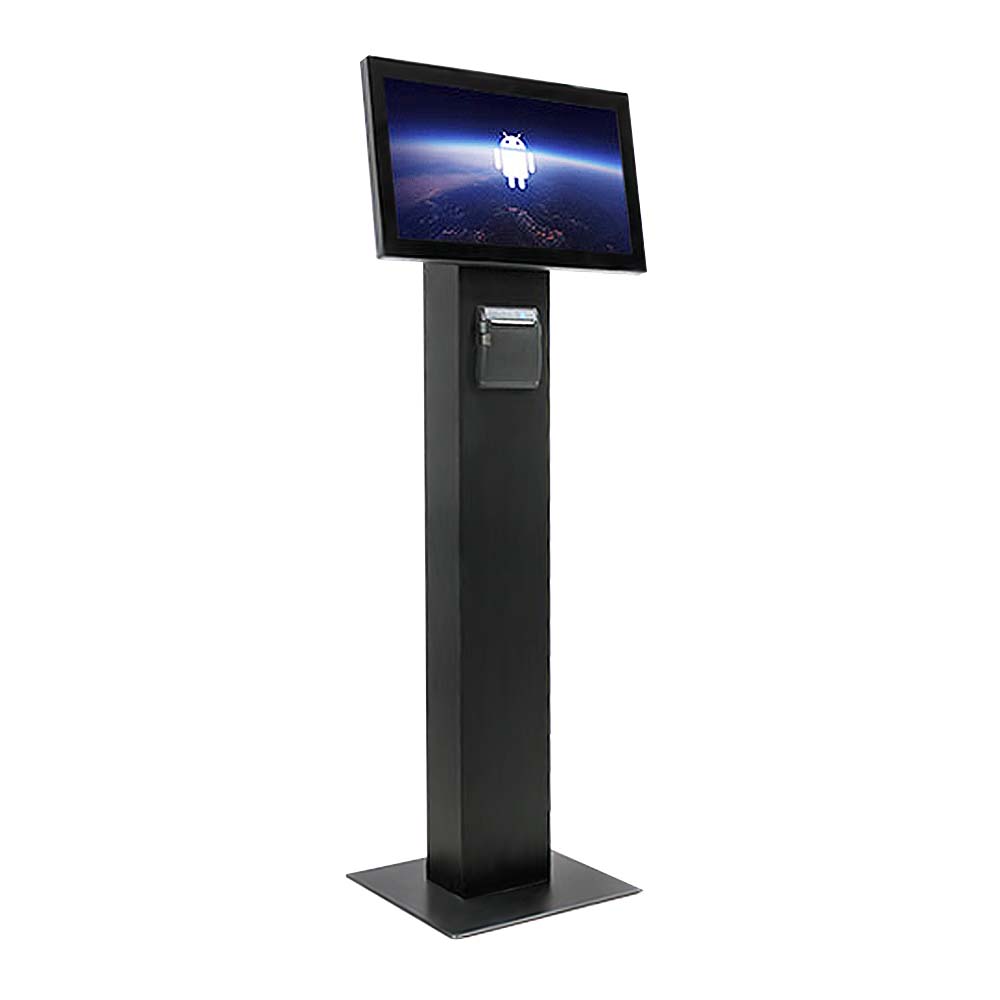

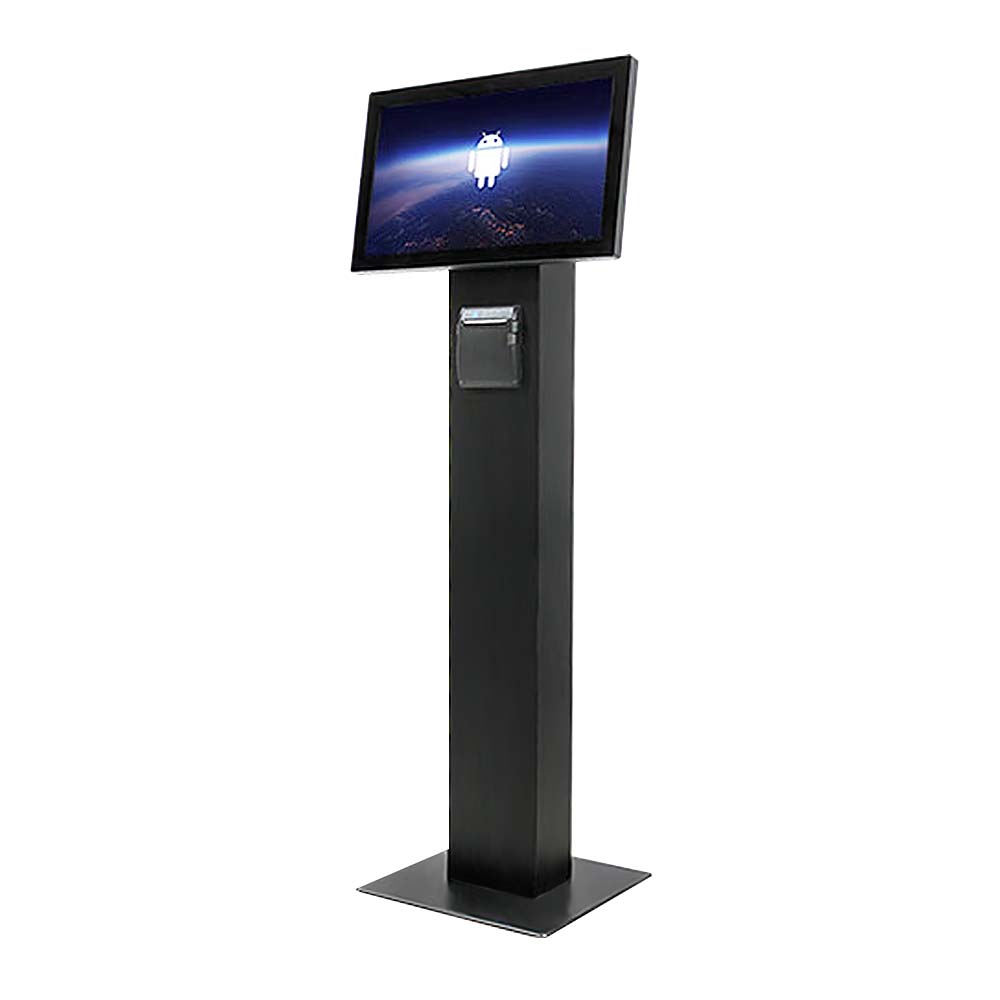

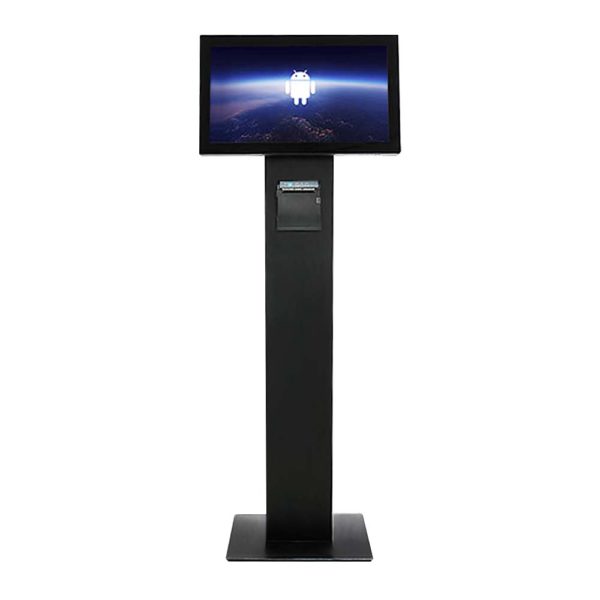

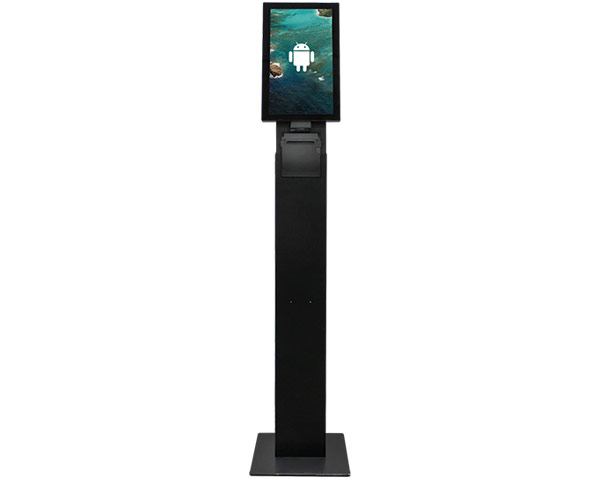

22″ Android POS Kiosk with Stand
Usher in the future of self-ordering and self-pay with the TEAMSable Floor Self-Service Kiosks.
TEAMSable 22P-RMK1-FLOOR
Usher in the future of self-ordering and self-pay with the TEAMSable Floor Self-Service Kiosks. They can be used for a range of transactional applications with integrations such as: capacitive touchscreens, barcode scanners, thermal printers, and optional keypad/NFC/ EMV payment integrations.
- 1920 x 1080 Resolution
- Cortex A17, A53/A72, 2/4GB RAM
- Wi-Fi/ BL
- USB, Ethernet
- Android 9.0
- Optional Built-in Printer, MSR/ Scanner, Payment Bracket
Built-in Printer
Thermal Printer
High-Performance CPU & OS
Android 9.0 + Cortex A17, Quad-Core 1.6GHz / Cortez A72 + A53, Six-Core 1.7GHz

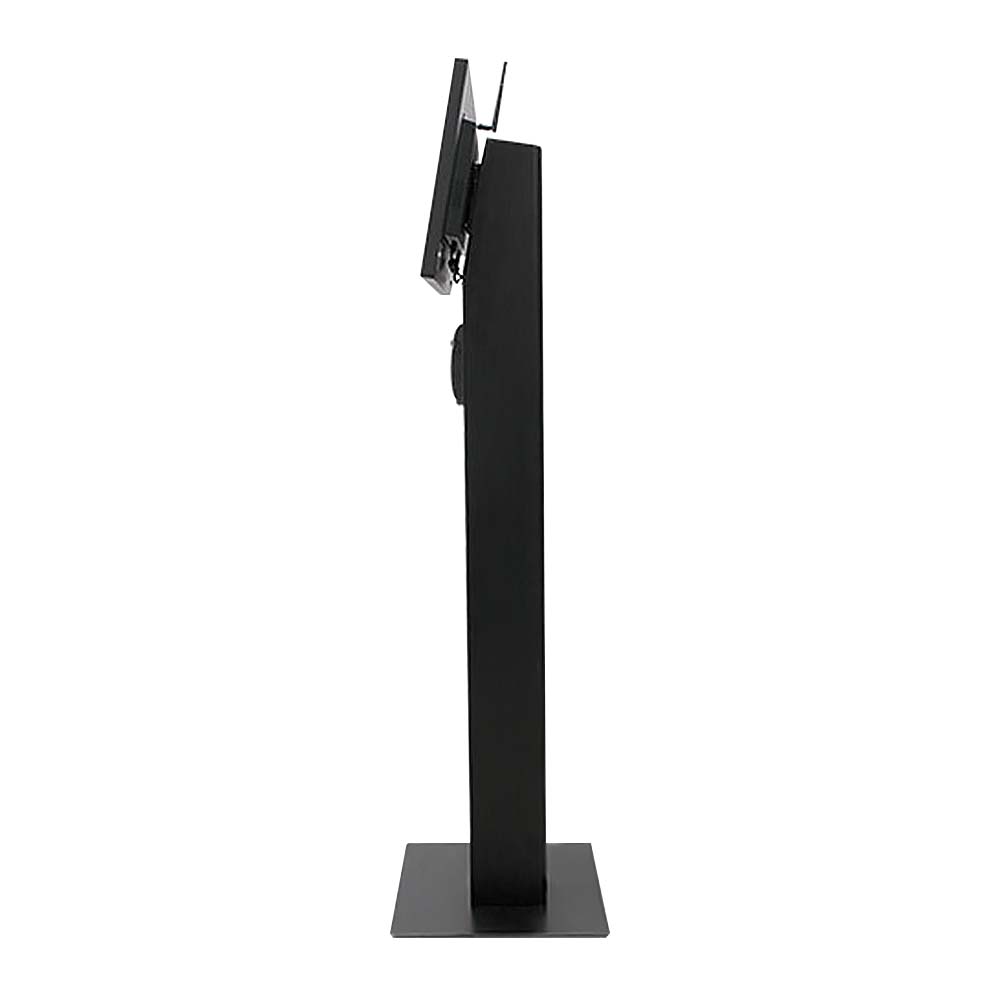

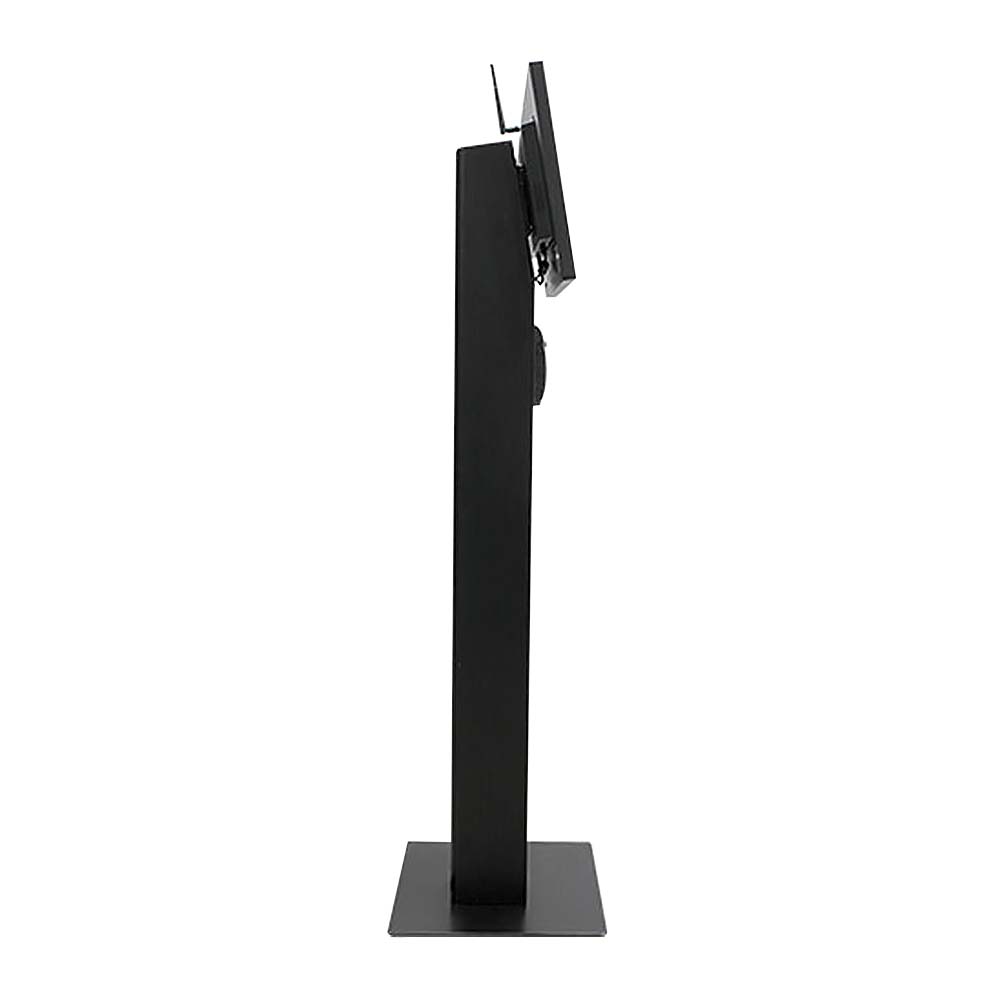

Slim Design
| MODEL | DESCRIPTION |
| 22P-RMK1-Floor | 22" Kiosk w/Stand, Android w/A17, 2G RAM, 16G Flash, Android 9.0 |
| 22P-RMXK1-Floor | 22" Kiosk w/Stand, Android w/A52, 4G RAM, 16G Flash, Android 9.0 |
| PERIPHERALS | DESCRIPTION |
| Thermal Printer | Out-of-paper Sensor, Auto Cutter |
| 2D Barcode Scanner | 1D/2D Supported |
| Smart IC Card Reader | N/A |
| NFC Reader | N/A |
| Box Details | 2"(L) x 21"(W) x 14"(H) Weight: 15.4 lbs. |
| Inside the Box | 22" Android POS Kiosk AC Adapter Printer Adapter |
| HARDWARE | |
| Display | 21.5" IPS LED Panel |
| Resolution | 1920x1080 (16:9 diagonal) |
| Touch Technology | Projected Capacitive |
| CPU |
Cortex A17, Quad-Core 1.6GHz / Cortez A72 + A53, Six-Core 1.7GHz |
| Memory |
2GB RAM / 4GB RAM |
| Storage | 16GB eMMC |
| OS SUPPORT | |
| Android | Android 9.0 |
| OPTIONAL PERIPHERALS | |
| Thermal Printer | Out-of-paper Sensor, Auto Cutter |
| 2nd Barcode Scanner | 1D/2D Supported |
| Smart IC Card Reader | ISO 7816 |
| NFC Reader | N/A |
| EXTERNAL PORTS | |
| USB | USB 2.0 Type-A x 4 |
| USB | Micro USB x 1 |
| HDMI | Mini HDMI x 1 |
| Ethernet | 10/100Mps x 1 |
| Audio I/O | Combo Jack x 1, SPDIF x 1 |
| Speaker | 3W x 2 |
| ENVIRONMENT | |
| Operating Temp. | 0 - 35 C° |
| Relative Humidity | 10% - 90% (Non-Condensing) |
| Certification | RoHS, REACH, ISO9002 |
| PACKAGE | |
| Dimension | 2"(L) x 21"(W) x 14"(H) |
| Weight | 15.4 lbs. |
Give Your Customers Control with a Self-Service Retail Kiosk
Are you losing revenue because of long lines and frustrated customers? A self-service retail kiosk can help you take control of your customer experience and increase sales.
Self-service retail kiosks are becoming increasingly popular as businesses seek to improve the checkout process. Kiosks can be used for a variety of purposes, including product information, order entry, and payments.
The TEAMSable 22P-RMK1-FLOOR comes with a sleek yet sturdy stand to create an all-in-one solution for any business.
Add peripherals like a built-in printer and MSR reader, or take advantage of the 10-point projected capacitive touchscreen to build an unforgettable shopping experience for your customers.
The 22″ display is perfect for high-traffic areas and provides stunning quality for ease of use and customer satisfaction.
Powered by Android
Backed by the stability and familiarity of Android, the 22P-RMK1-FLOOR is simple to use and operate.
Eliminate the Wait
Get your customers through the line and out the door quickly with a self-service retail kiosk.
Make a Statement
With its clean yet robust design, the TEAMSable 22P-RMK1-FLOOR is sure to turn heads and increase sales.
